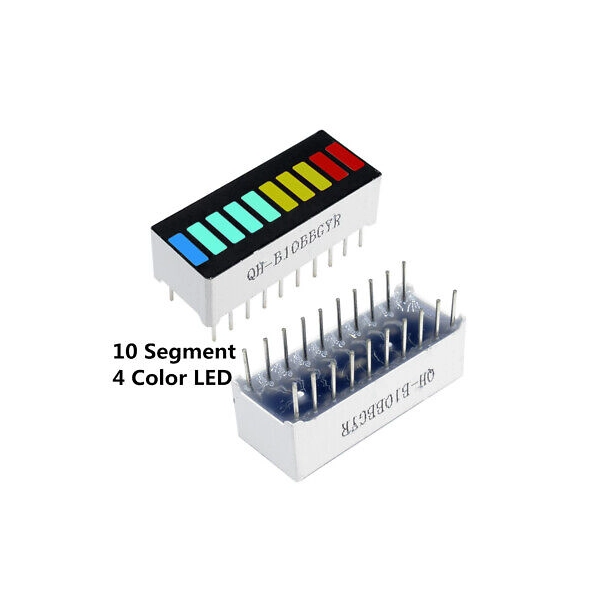

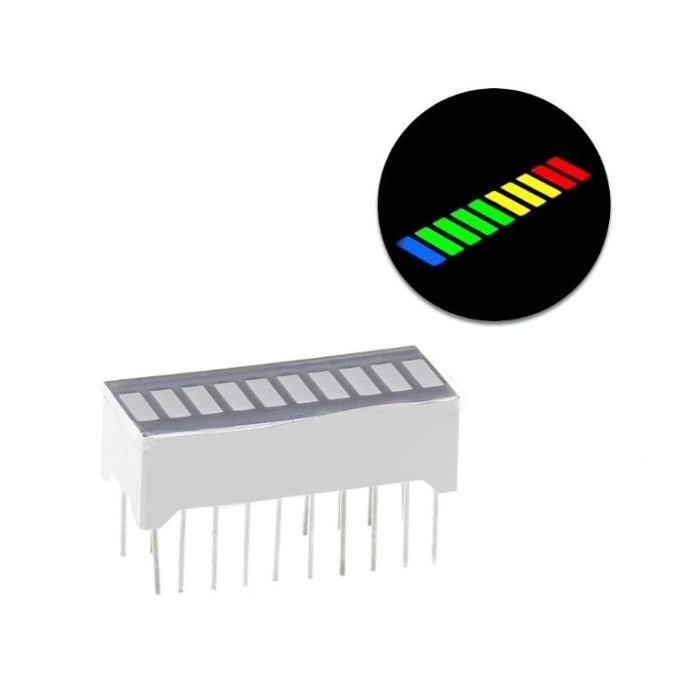

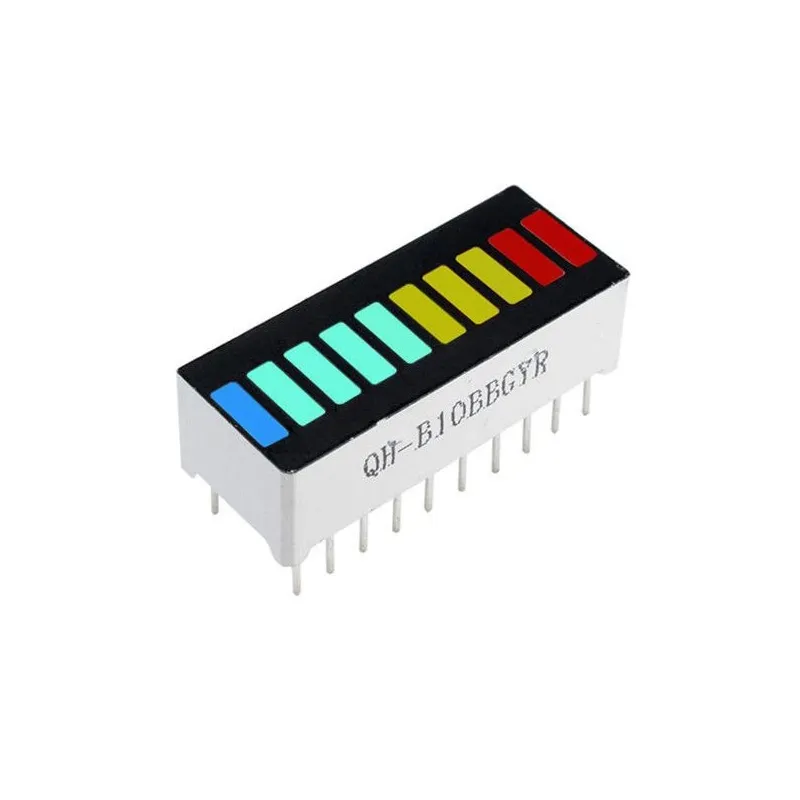

10-Segment LED Bar Graph Display Module B10BBGYR

The B10BBGYR is a 10-segment LED Bar Graph Display Module, designed to seamlessly integrate with electronic circuits and microcontrollers such as Arduino and Raspberry Pi. This module simplifies the process of wiring 10 individual LEDs to 10 output pins, making it an ideal choice for both electronics engineers and hobbyists. It is commonly used in battery level indicators, audio equipment, and industrial control panels. The LED bar graph can be controlled using a microcontroller or by directly connecting it to an electronic circuit.

? LED Configuration:

• 1 x Blue Light
• 4 x Green Light
• 3 x Yellow Light
• 2 x Red Light

? Technical Specifications:

• Color: Red, Yellow, Green, Blue
• Pin Pitch: 2.54mm
• Number of Pins: 20
• Forward Voltage: Red - 2.5V, Yellow - 2.0V, Green - 2.8V, Blue - 3.0V
• Forward Current: 15mA (max)
• Reverse Voltage: 5V (max)
• Luminous Intensity: 60mcd
• Operating Temperature: -25℃ to 85℃
• Storage Temperature: -30℃ to 85℃
• Soldering Temperature: 260℃ for 5 sec
• LED Colors: Red, Green, Blue, Yellow, Orange

✨ Key Features:

• 10 LEDs with individual control
• High Luster
• High Intensity
• Breadboard or Perf Board Friendly
• RoHS Compliant
• Wide Viewing Angle

? Applications:

• Industrial Controls
• Instrumentation
• Office Equipment
• Computer Peripherals
• Consumer Products
• Digital Display
•
