20A Brushed ESC Electronic Speed Controller with Brake Function for RC Vehicles

Our 20A Brushed Electronic Speed Controller (ESC) is a compact, high-performance device designed for RC cars, boats, and tanks. It can deliver a current of up to 20A, powered by a 2S Li-Po battery. This ESC is designed to accept standard RC signals and offers forward, reverse, and braking functions. It features high-quality silicone cables for battery input and motor output, ensuring reliable and efficient performance.

📌 Key Features

• 20A Brushed Speed Controller: Provides robust control for your RC vehicles.
• Multi-Function: Offers forward, reverse, and brake functions.

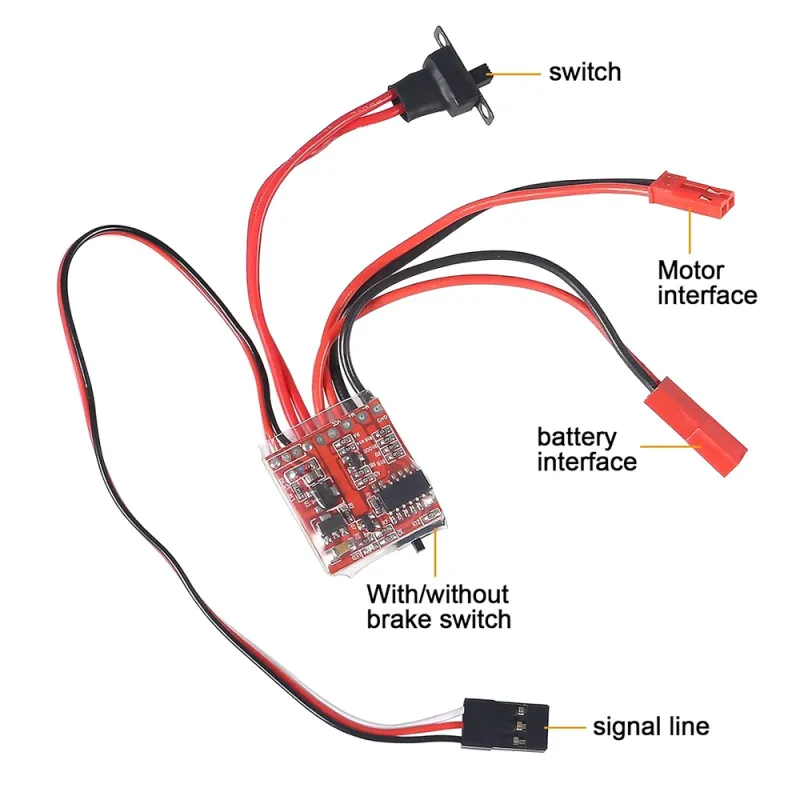

• High-Quality Silicone Cables: Ensures efficient power transfer from the battery to the motor.

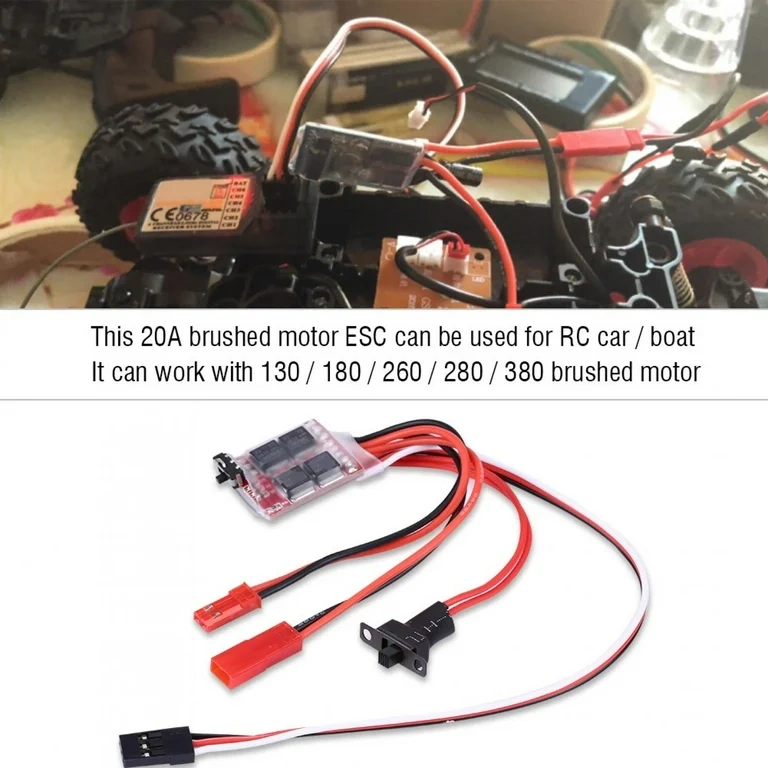

• Wide Compatibility: Works with 130/180/260/280/380 Brush Motors.

🔧 Technical Specifications

• Item Type: Brush Motor Speed Controller for RC Vehicles
• Working Voltage: 3.0V — 9.4V
• Current: 20A
• Driver Frequency: 2KHz
• Input: Li-Po 2S / Ni-Mh/Ni-Cd 4-7 cell
• Constant Current: 20A (Max 25A for less than 30s)
• Pulse Current: 50A (for less than 5s)
• Dimensions: 10 * 2 * 0.5cm
• Weight: 8g

Whether you're an electronics engineer or a hobbyist, this 20A Brushed ESC Electronic Speed Controller is an essential component for your RC vehicles. Its compact size, high current capacity, and versatile functionality make it an ideal choice for a wide range of applications
