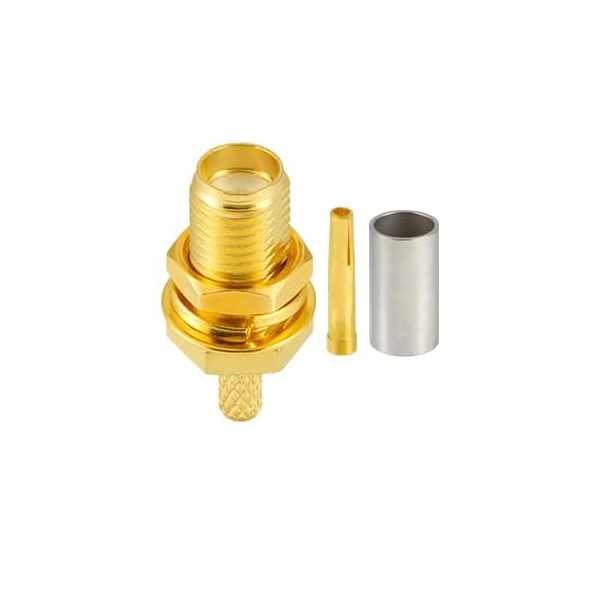

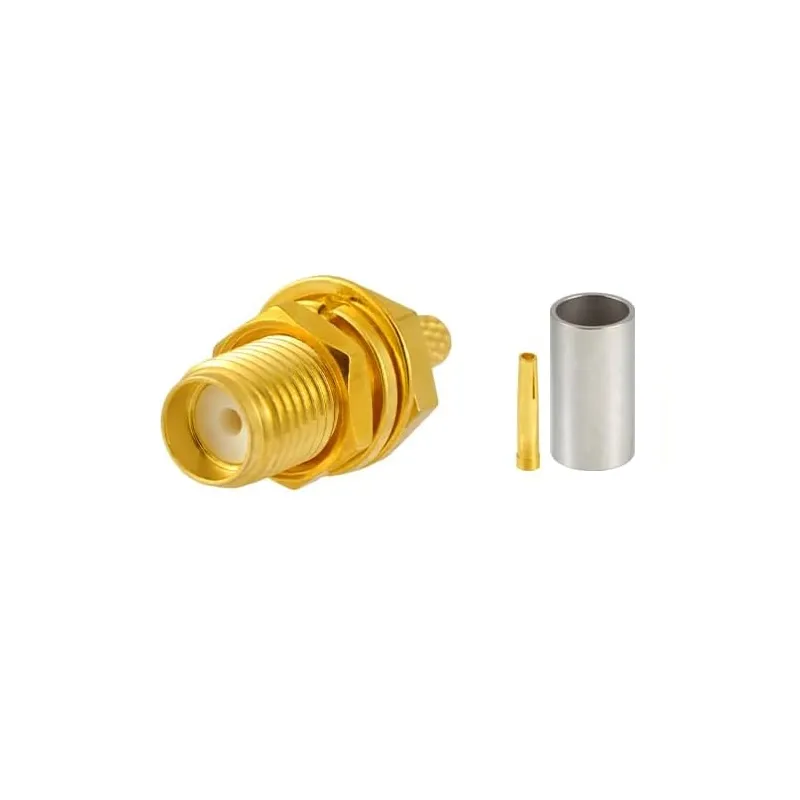

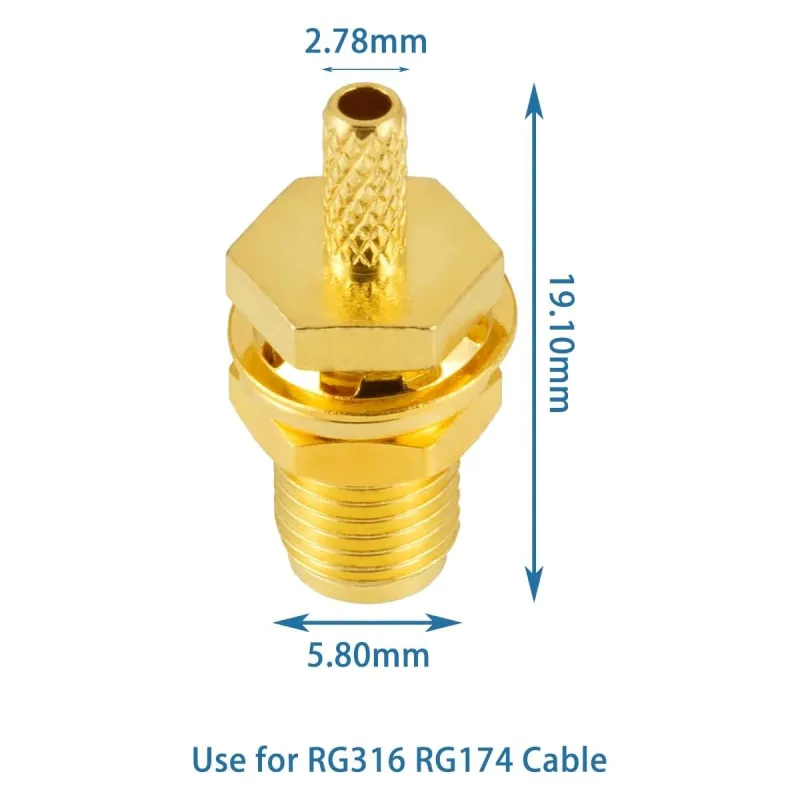

SMA Female RF Connector for RG316 RG174 LMR-100A

🔎 Overview

Our SMA Female Crimp Connector, offered by Max-Gain Systems, Inc., is part of an extensive range of RF products designed to meet your connectivity needs. Constructed from a solid brass body, this connector is precision-machined and gold-plated, ensuring superior performance and excellent value. Its design incorporates a PTFE dielectric and a gold-plated brass center pin. The SMA Female interface, featuring a jack and exterior threads, offers a sub-miniature, tight-locking connection that is ideal for high-frequency applications.

🔌 Compatible Coaxial Cables

  • RG-174
  • RG-188
  • RG-188A/U
  • RG-316
  • RG-316/U Double Shield
  • LMR-100A
  • Belden 7805R
  • Belden 8216
  • Belden 83269
  • Belden 83284
  • Belden 84316
  • Other 0.100 Inch OD Coaxial Cables

📝 Technical Specifications

Our SMA Female Crimp Connector is designed for optimal performance in a variety of applications. Here are the key technical specifications:

  • Connector Type: SMA
  • Gender: Female
  • Fitting: Cable RJ316
  • Contact Plating: Gold plated
  • Impedance: 50 Ω
  • Max Contact Resistance: 2 mΩ
  • Min Insulation Resistance: 5 GΩ
  • Maximum Frequency: 12.4 GHz
  • Insulator Material: PTFE (Teflon)
