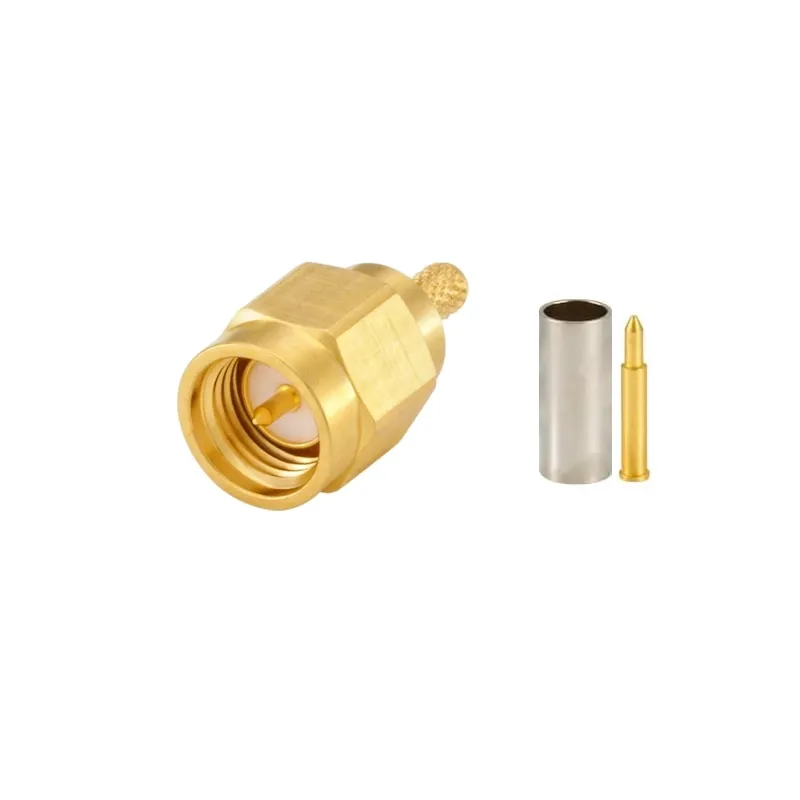

SMA Male RF Connector for RG316, RG174, and LMR-100A
Orders placed before 16:30 on weekdays are sent on the same day. Free shipping over 150 RON.
3,91RON
Ex Tax: 3,91RON
- Stock: In Stock
- Model: A1383.SMA-M
Tags:
---
Male SMA Crimp Connector for RG174, RG188, RG316 Coaxial Cables
Our Male SMA Crimp Connector is expertly designed for crimp attachment to RG174, RG188, and RG316 coaxial cables. This connector is compatible with standard crimp tools and supports common crimp sizes of 0.128" for the crimp ferrule and 0.042" for the pin. With its 50 Ohm impedance, this subminiature connector employs a threaded coupling mechanism, making it an ideal choice for higher frequency applications.
? Key Features
- Availability of associated bulk cable and crimp tools
- Gold-plated connector body and coupling nut for superior corrosion resistance
- Gold-plated contact pins to minimize signal loss
- Designed specifically for crimp-style attachment to RG174, RG188, and RG316 coaxial cables
? Applications
- Coaxial cable assembly
- Coaxial cable installation
- Premise wiring
- Coaxial cable repair
? Compatible Coaxial Cables
- RG-174
- RG-188
- RG-188A/U
- RG-316
- RG-316/U Double Shield
- LMR-100A
- Belden 7805R
- Belden 8216
- Belden 83269
- Belden 83284
- Belden 84316
- Other 0.100 Inch OD Coaxial Cables
⚙️ Technical Specifications
- Connector Type: SMA
- Gender: Male
- Fitting: Cable RJ316
- Contact Plating: Gold plated
- Impedance: 50 Ω
- Max Contact Resistance: 2 mΩ
- Min Insulation Resistance: 5 GΩ
- Maximum Frequency: 12.4 GHz
- Insulator Material: PTFE (Teflon)
